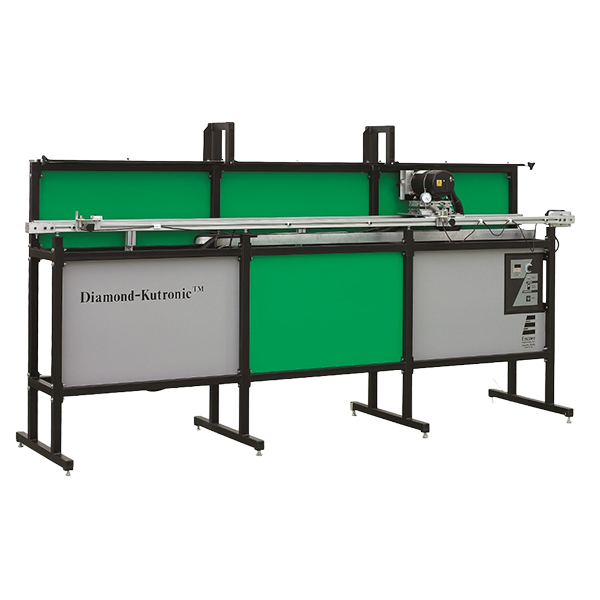

Diamond-Kutronic 60" Auto Squeegee Sharpener
Fully automatic 60" diamond-wheel squeegee sharpener engineered for precise, repeatable blade resurfacing with controlled grinding pressure, uniform sharpening speed, and consistent material removal.
Characteristics
The Diamond Kutronic 60" Automatic Squeegee Sharpener is a professional precision sharpening system designed to restore screen printing squeegee blades to a clean, consistent printing edge. Built for production screen-printing environments, the machine accommodates squeegees up to 60" (153 cm) long.
Unlike conventional belt-sanding methods, the Kutronic uses precision diamond grinding wheels to remove controlled amounts of polyurethane from the printing edge. Diamond-wheel sharpening provides a consistent cutting surface while helping maintain the geometry of the squeegee blade throughout the sharpening process.
The Kutronic is fully automated, helping eliminate many of the variables associated with manually sharpening long squeegees. Uniform sharpening speed, consistent grinding pressure, and controlled material removal contribute to repeatable results from one blade to the next.
The machine's clamping system is designed to securely hold the squeegee blade during sharpening while maintaining its relationship to the grinding wheel. This is particularly important with longer squeegees, where blade bending or bowing can contribute to an uneven printing edge.
The 60" Kutronic also incorporates adjustable camber capability. This allows the sharpening profile to compensate for potential curvature in longer squeegee assemblies and helps maintain consistent blade contact across the printing surface.
Two straight/square-edge diamond grinding wheels are supplied as standard. The standard wheel selection includes 100-grit and 360-grit diamond wheels, allowing operators to perform both material removal and finer finishing operations.
Recommended material removal is approximately 0.002" to 0.005" (0.05 to 0.10 mm), depending on the diamond-wheel grit and sharpening requirements. Removing controlled amounts of material helps maximize usable squeegee blade life while reducing the frequency and cost of complete blade replacement.
For screen printers processing wide-format graphics, industrial printing, or other applications requiring long squeegee assemblies, the Diamond Kutronic 60" provides an efficient way to maintain consistent squeegee condition and reduce the expense associated with prematurely replacing worn blades.
- Fully automatic squeegee sharpening system
- Designed for professional screen-printing production
- Sharpens squeegee blades up to 60" (153 cm)
- Precision diamond-wheel sharpening technology
- Provides consistent sharpening speed
- Maintains uniform grinding pressure
- Provides controlled material removal
- Helps produce repeatable blade edges
- Reduces operator variability compared with manual sharpening
- Secure clamping system helps maintain blade position
- Designed to minimize bending and flexing of long squeegee blades
- Adjustable camber capability for long squeegee applications
- Helps restore worn squeegees to a clean printing edge
- Straight/square-edge sharpening capability
- Includes two diamond grinding wheels
- 100-grit diamond wheel for material removal
- 360-grit diamond wheel for finer finishing
- Additional diamond-wheel grits may be available
- Suitable for textile, graphics, industrial, and wide-format screen printing
- Helps maximize usable squeegee blade life
- Reduces the frequency and cost of complete blade replacement
- Well suited for shops using long or wide-format squeegees
- Floor-standing production equipment
- Inspect the squeegee blade before sharpening for cuts, excessive swelling, chemical damage, or other conditions that may require blade replacement instead of sharpening.
- Make sure the squeegee is securely and correctly positioned in the clamping system before beginning a sharpening cycle.
- Select the appropriate diamond-wheel grit for the amount of material that needs to be removed.
- Use a coarser wheel when greater material removal is necessary and a finer wheel when producing the finished printing edge.
- Remove only the amount of polyurethane necessary to restore the printing edge.
- The recommended material-removal range is approximately 0.002" to 0.005" per sharpening operation, depending on wheel grit and blade condition.
- Inspect the entire printing edge after sharpening to verify that it is straight, clean, and consistent.
- Check camber adjustment when sharpening longer squeegee assemblies.
- Keep the grinding area and machine components clean to maintain accurate operation.
- Follow the manufacturer's maintenance procedures for inspecting and servicing diamond grinding wheels and moving components.
- Follow all manufacturer safety procedures and use appropriate personal protective equipment when operating or servicing the machine.
- Professional screen-printing production facilities
- Textile screen printing operations
- Graphics and industrial screen printing
- Wide-format screen printing applications
- Shops using long squeegee assemblies
- Operations requiring repeatable squeegee-edge maintenance
- Facilities looking to extend usable squeegee blade life
- Production environments seeking to reduce complete blade replacement costs
