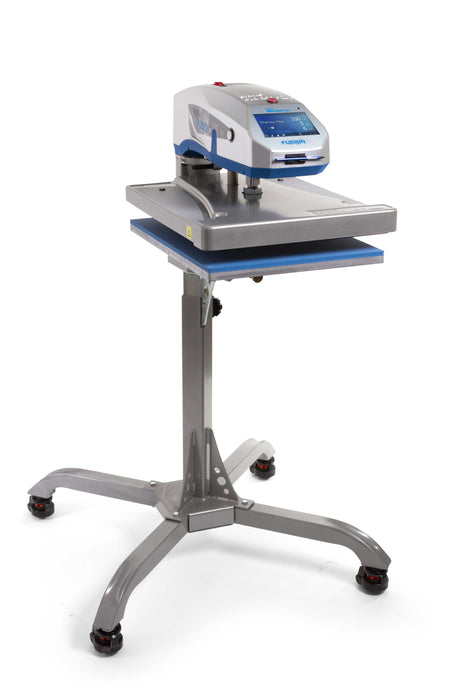

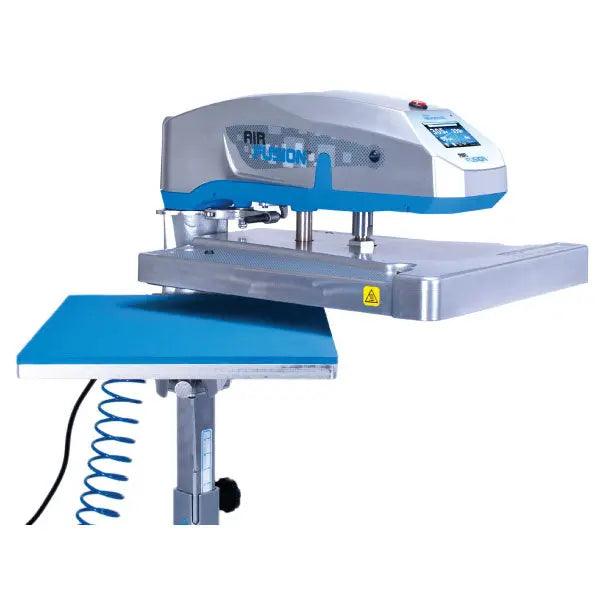

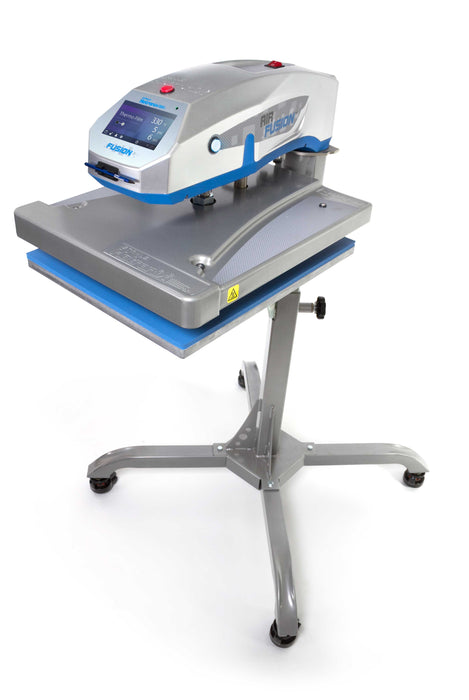

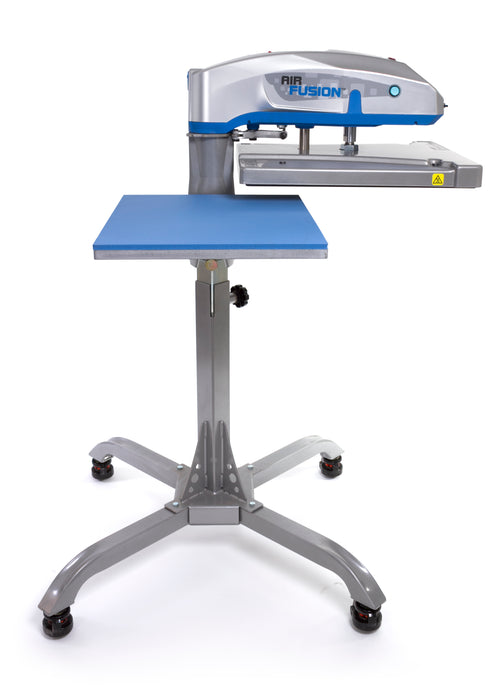

Stahls' Air Fusion IQ Pedestal Heat Press

$5,150.00
SKU SH-XRF

The world’s most advanced heat press just got smarter.

Register your Air Fusion and access the Hotronix Online Portal to manage users, generate usage reports, and troubleshoot issues. Plus, a brand-new controller with a larger, higher resolution screen makes it easier than ever to modify settings and save recipes.

  • Air power reduces operator fatigue in high-volume shops
  • Hands-free auto-swing creates a heat-free workspace
  • Available in Pedestal and Table Top models
  • Powered by an air compressor (not included)

Additional Features

  • Online access to reporting, including total impressions, active/idle time, and average cycle time.
  • Self-diagnostics help with troubleshooting and maintenance.
  • 16" x 20" upper platen.
  • Stores hundreds of application settings.
  • Adjustable stand creates an ergonomic workspace for multiple users.
  • Threadability™ increases production – load garments once and easily rotate from front to back.
  • Exclusive Touch Screen Controller with new Multi-swipe gestures.
  • Data interface port for software upgrades.
  • Live digital time, temperature, and pressure readout.
  • Energy-saving 4 hr sleep mode.
  • Production cycle counter.
  • UL/ULC/CE/RoHS compliant.
  • Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 15 amps; 3500 w
  • Must have designated circuit breaker
  • 3/4 inch heat platen with fast recovering heater technology.
  • Die pressure cast 356 aluminum corrosion-free framework.
  • Proudly made in the USA.
  • Premier warranty.
  • Actual Weight: 152 lbs
  • Shipping Weight: 245 lbs
  • Dimensions: 40" x 32" x 57"
  • Shipping Dimensions: 40" x 48" x 58"

Hotronix Premier Warranty

  • Lifetime Warranty on Heating Element
  • 5 yr on Framework
  • 2 yr on Circuit board
  • 1 yr parts/labor

Download Operator's Manual

Tech Support Tips

Download Platen Compatibility Guide
