Douthitt CTS-30 Direct to Screen Unit
Limited Availability
$55,820.00
SKU DH-SPSI-CTS30

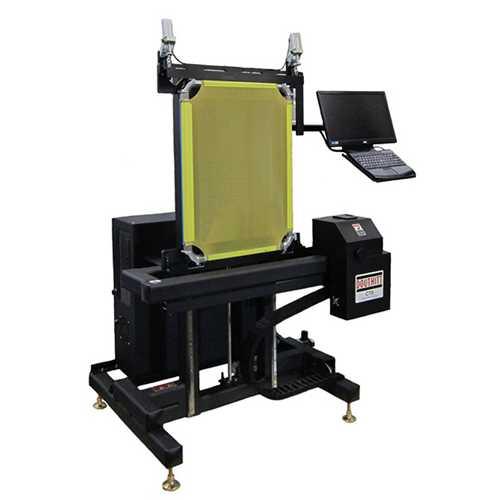

Douthitt Computer to Screen Model CTS
Characteristics
The Douthitt Computer to Screen Model CTS uses phase-change solid ink print head technology to print images directly onto screens, eliminating the need for film.
This CTS system helps improve image detail, density, consistency, registration, and turnaround time while reducing handling, exposure time, labor cost, and film storage.
To check availability of in-stock equipment call our Sales Department at 800-876-7774 or email us
Typically ships directly from the manufacturer and is not in-stock at SPSI.
Features
▼
- Print head technology with phase-change solid ink for improved image detail, density, and consistency
- PC with easy, intuitive operating controls
- Compatible with any RIP that can output 1-bit uncompressed TIFF files at 600 DPI
- Files can be automatically added to the print queue through an Ethernet network
- Air clamp assembly with convenient foot switch
- No film required — print the image directly on the screen and expose
- High-density wax allows the screen to fully harden
- Repeatability saves registration setup time
- Robust construction with a proven track record
Specifications
▼
Model
CTS30
Max Screen
25" x 36"
Max Image
20" x 30"
Floor Space
37" x 52"
Crated Weight
925 lbs.
Model
CTS52
Max Screen
54" x 46"
Max Image
50" x 40"
Floor Space
37" x 78"
Crated Weight
1240 lbs.
Electrical
120V
Air Requirement
Requires compressed air
